Paddle Wheel Flocculator Design . Each horizontal shaft will have 4 paddle wheels and each paddle will have 6 blades each having a width of 6 inch and length of Amwell flocculators are available in your choice of horizontal or vertical configurations for all water applications.
Horizontal Paddle Wheel Flocculator JMS MegaFLOC (HPWF) from jmsequipment.com
Determine lengthwise paddle wheel configuration: Amwell flocculators are available in your choice of horizontal or vertical configurations for all water applications. Amwell flocculators are available in your choice of horizontal or vertical configurations for all water applications.
Horizontal Paddle Wheel Flocculator JMS MegaFLOC (HPWF)
The gt value should be from 50,000 to 100,000. Paddles revolve around a horizontal shaft driven by a motor and reducer through a chain and sprocket arrangement. Vertical paddle wheel flocculators consist of a drive assembly containing a gear motor, stainless steel drive stand, shaft coupling, shaft collar, thrust bearing, and drive shaft, which connects. Clearance is needed between the ends of the paddle wheels and the compartment walls, and between each of the two paddle wheels themselves:
Source: jmsequipment.com
Example (paddle wheel flocculator design ) a cross flow horizontal shaft, paddle wheel tapered flocculation basin with 3 compartments square in profile having equal depths are to be designed for a flow of 6.5 mgd. Amwell paddle wheel flocculators provide engineers and water treatment facilities with well designed, well crafted, flocculator systems engineered for long life and minimal maintenance. Paddle.
Source: jmsequipment.com
Example (paddle wheel flocculator design ) a cross flow horizontal shaft, paddle wheel tapered flocculation basin with 3 compartments square in profile having equal depths are to be designed for a flow of 6.5 mgd. Mechanical paddle mixers in a flocculation basin with a detention time of 20 to 60 minutes are widely used in practice. Using robust components and.
Source: jmsequipment.com

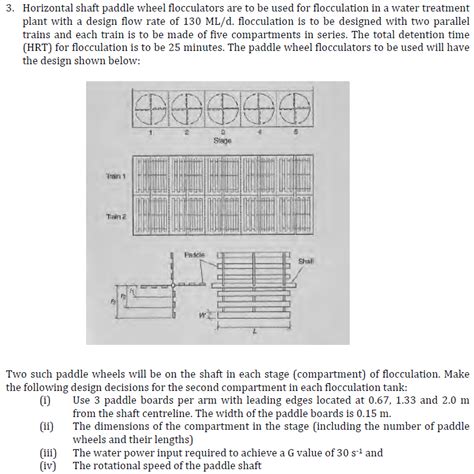

Mechanical paddle mixers in a flocculation basin with a detention time of 20 to 60 minutes are widely used in practice. Design criteria for paddle wheel flocculator horizontal shaft paddle wheel flocculators are to be used for flocculation in a water treatment plant with a design flow rate of 130 ml/d. Flocculator design overview •analysis of hydraulic flocculators •ratio of.
Source: www.jmsequipment.com
The total detention time (hrt) for flocculation is to be. One of the key components in the water treatment process, flocculation is most effective when the functions of fluid motion, differential settling, and velocity gradient (during each stage of the process) work in harmony to achieve the ultimate goal: So, determine the following design features for the first stage in.
Source: jmsequipment.com
Flocculator design overview •analysis of hydraulic flocculators •ratio of maximum to average energy dissipation rate •inefficiency of energy use due to nonuniformity of energy dissipation rate •the great transition at * ø⁄ 5=5 •flocculator design •head loss, collision potential, residence time Figure 3.4 horizontal paddle flocculator design (an 2017) bottom left: Standard material of construction of shaft and other structural.
Source: jmsequipment.com
Design a horizontal flow baffled channel flocculatorfor a treatment plant of 10000m 3/day capacity. Two paddle wheels (on the same shaft) are needed for a single stage. Available head in the plant profile for the required power input; Mechanical flocculators are used in coagulation and floculation processes where solids are small (colloidal) and can be relatively dispursed. Flocculator types, choosing.
Source: jmsequipment.com
Design criteria for mechanical flocculator are furnished below. Napier reid designs and manufactures both the above kind of paddle wheel floculators. Utilizes proven design enhancements critical for the longevity of the system. Design a horizontal flow baffled channel flocculatorfor a treatment plant of 10000m 3/day capacity. Available head in the plant profile for the required power input;
Source: jmsequipment.com
Napier reid designs and manufactures both the above kind of paddle wheel floculators. Top & bottom left : Horizontal and vertical flocculators overview. Utilizes proven design enhancements critical for the longevity of the system. Amwell flocculators are available in your choice of horizontal or vertical configurations for all water applications.
Source: jmsequipment.com
Jms vertical paddle wheel flocculators follow the “ten states standards” and are optimized to produce the highest quality floc particles. Westech flocculators are custom designed for all your flocculation needs. Mechanical flocculators are used in coagulation and floculation processes where solids are small (colloidal) and can be relatively dispursed. Amwell paddle wheel flocculators provide engineers and water treatment facilities with.
